Truck Superstructure

Flexibility and optimum load factor

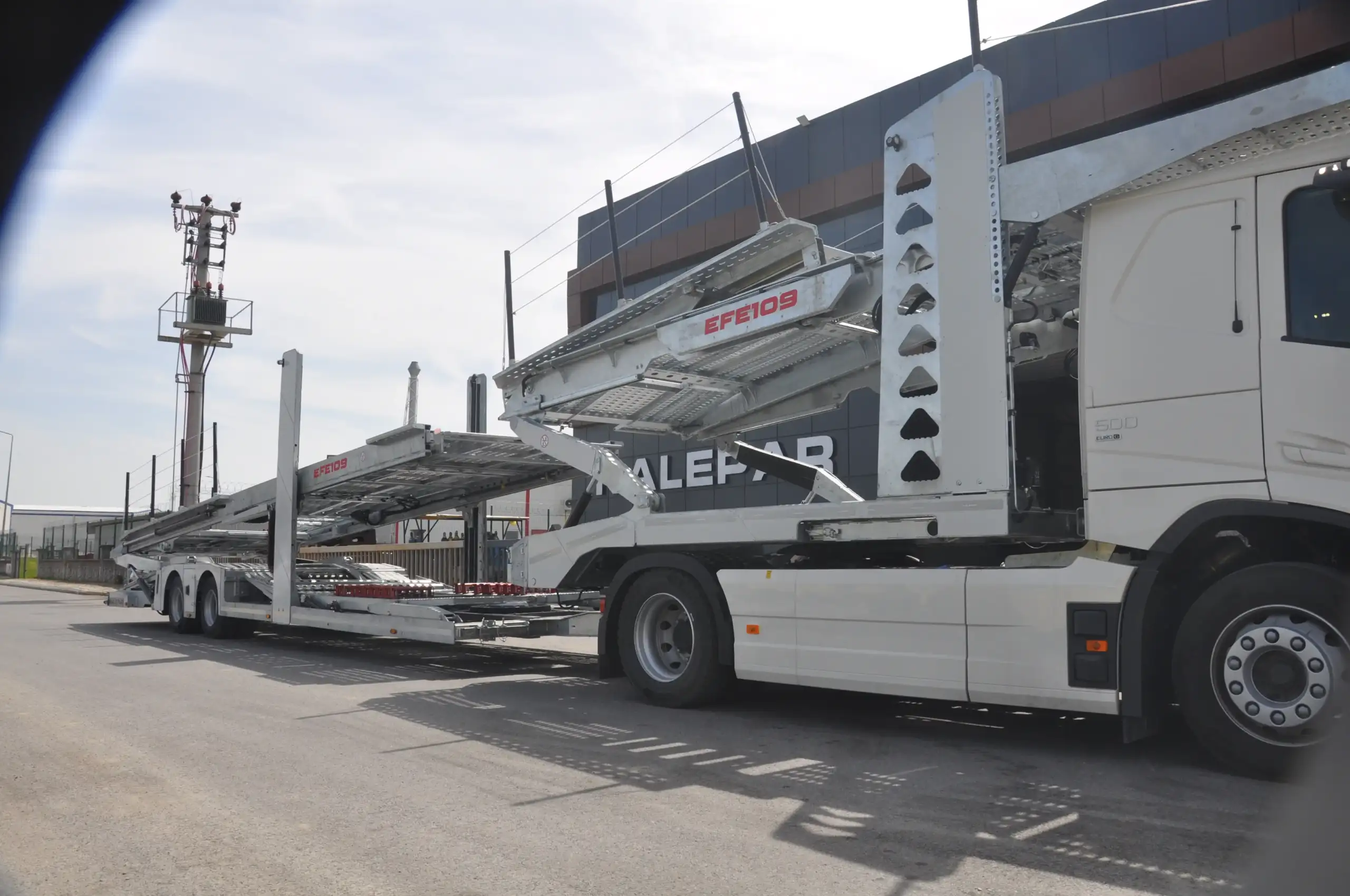

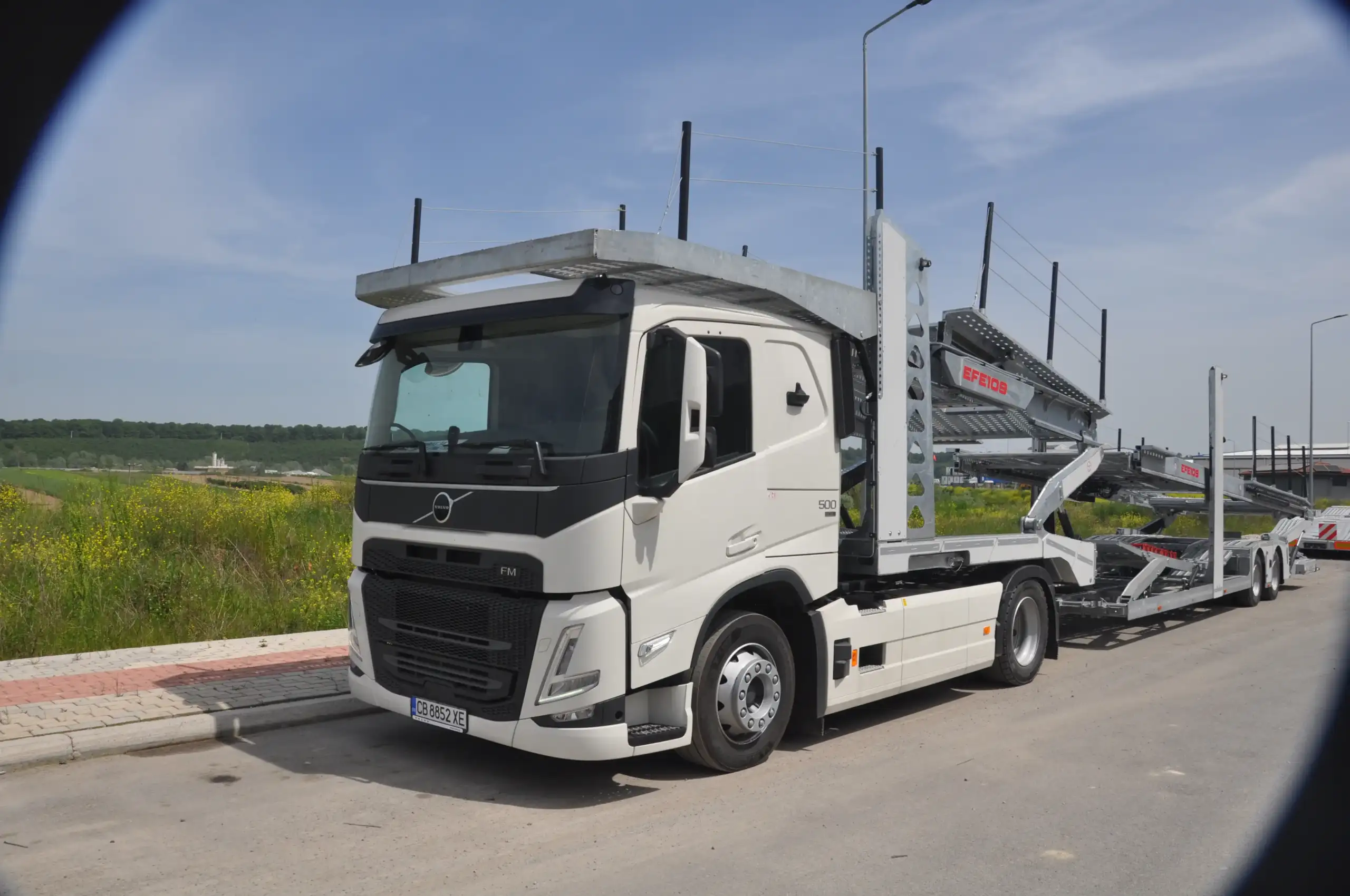

The key points of the metago®pro model family are flexibility and excellent load factor. This innovative vehicle transporter impresses with its virtually unlimited loading options.

High load factor due to hydraulically adjustable platforms

Easy and precise loading and unloading provide load safety and efficiency

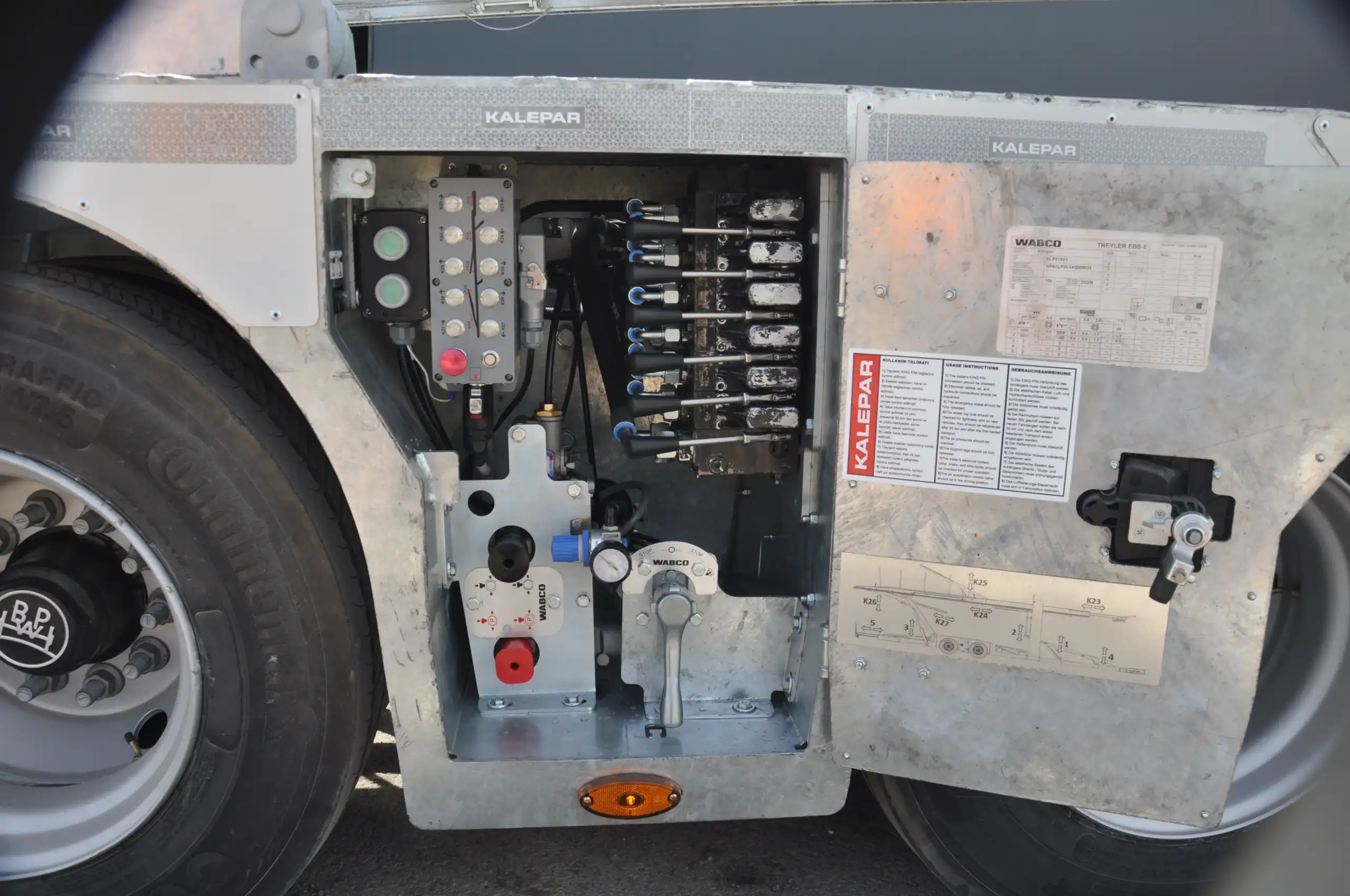

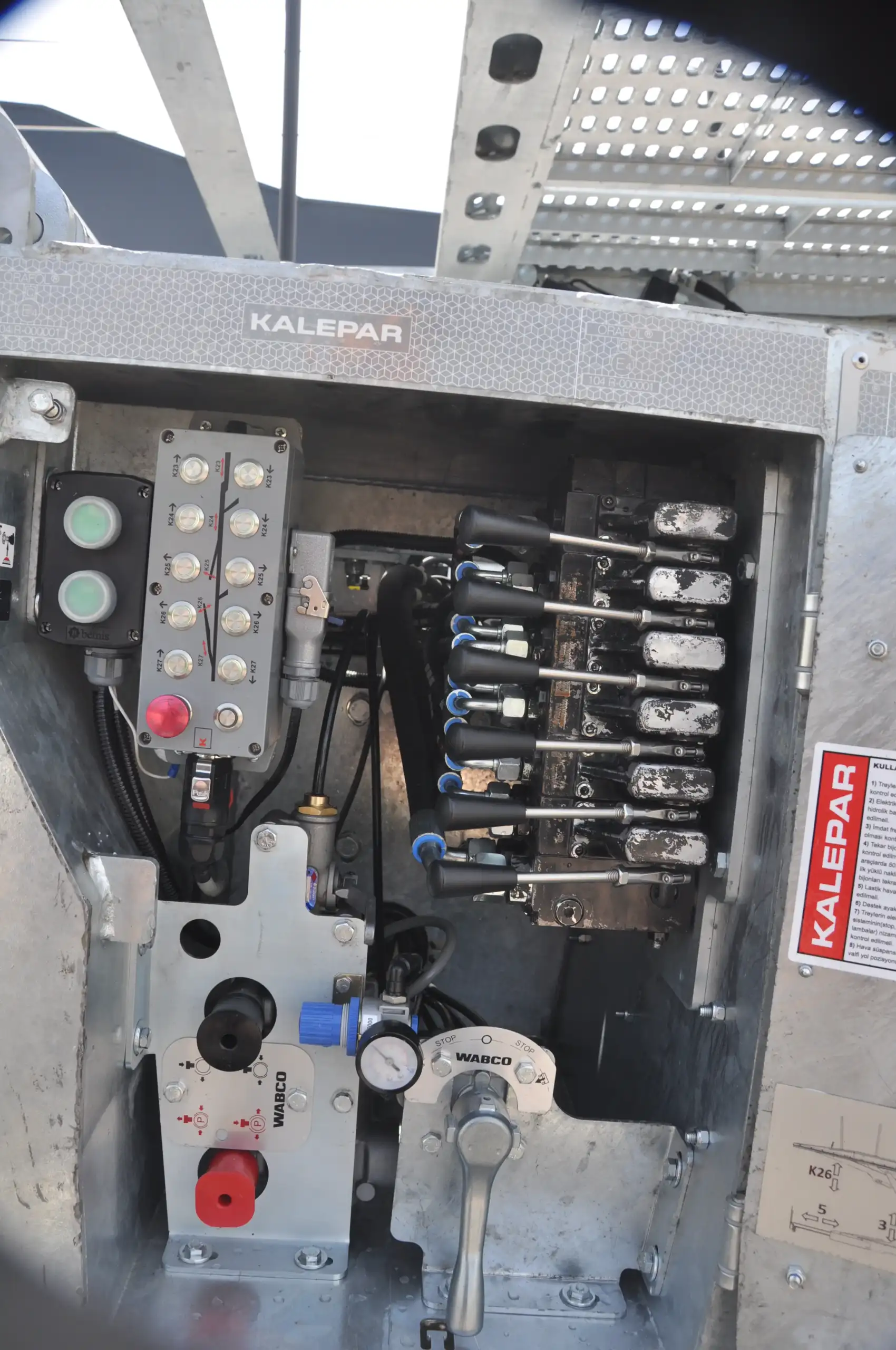

Ergonomic layout of the hydraulic controls with a perfect view of the moving platform components

Pillar groups and wheel housings are designed for a maximum load height

Features an optimized mounting space for the original fuel tank or for the Kässbohrer fuel reservoir solutions

Flexible operation in case of permanently changing loading demands

KLP 219V1

Kullanım Kılavuzu

Teknik Detaylar

Semitrailer structure

Extendible chassis composed by 2 central longitudinal beams.

Surface Treatment

Hot dipped galvanized +ral colour on the sides at customer’s choice

Braking System

2S-2M Wabco EBS-E

Suspension System

Pneumatic system

Electric System

24V Aspoeck

Tyres

8 units 215 / 75 R 17.5

Axles

9 ton capacity axle domestic or imported

Tore Weight

Trailer = from 9.000 kg to 8.000 kg Truck = from 4.500 kg to 4000 kg

G.V.W

19.000 kg ( 1.000 kg 5th wheel + 18.000 kg axles )

5th Wheel Length

from 1050 mm to 1150 mm

Trailer Width

2550 mm

Trailer Length

-

Total Trailer Length

18.750 mm
